In today's technological landscape, security and durability have become paramount, especially for surveillance cameras. The IK10 protection rating serves as a benchmark for evaluating the ability of an enclosure to withstand external impacts. Various environments and unexpected incidents, such as physical assaults, collisions, or falls, can lead to potential damage to these devices. Thus, it is essential to understand the definition of IK ratings and the specific levels of force they can endure when selecting suitable security equipment.
IK ratings are categorized into several levels, each indicating different degrees of impact resistance.
This article explores the importance of IK protection ratings, the benefits of utilizing IK10 cameras, their practical applications, and how to evaluate these standards. It will also discuss network cameras that feature IK vandal-resistant ratings, providing readers with valuable insights to make informed decisions.
What are IK ratings?
IK ratings (International Protection Rating) are a standard used to assess the impact resistance of devices, particularly suitable for industrial and public safety applications. This standard was developed by the International Electrotechnical Commission (IEC) and is specifically numbered IEC 62262, focusing on evaluating the ability of electrical equipment enclosures to withstand external impacts. The IK rating was initially defined in the European Standard BS EN 50102 (1995, revised in 1998). It was officially adopted as an international standard in 2002, and the European standard was renumbered to EN 62262.

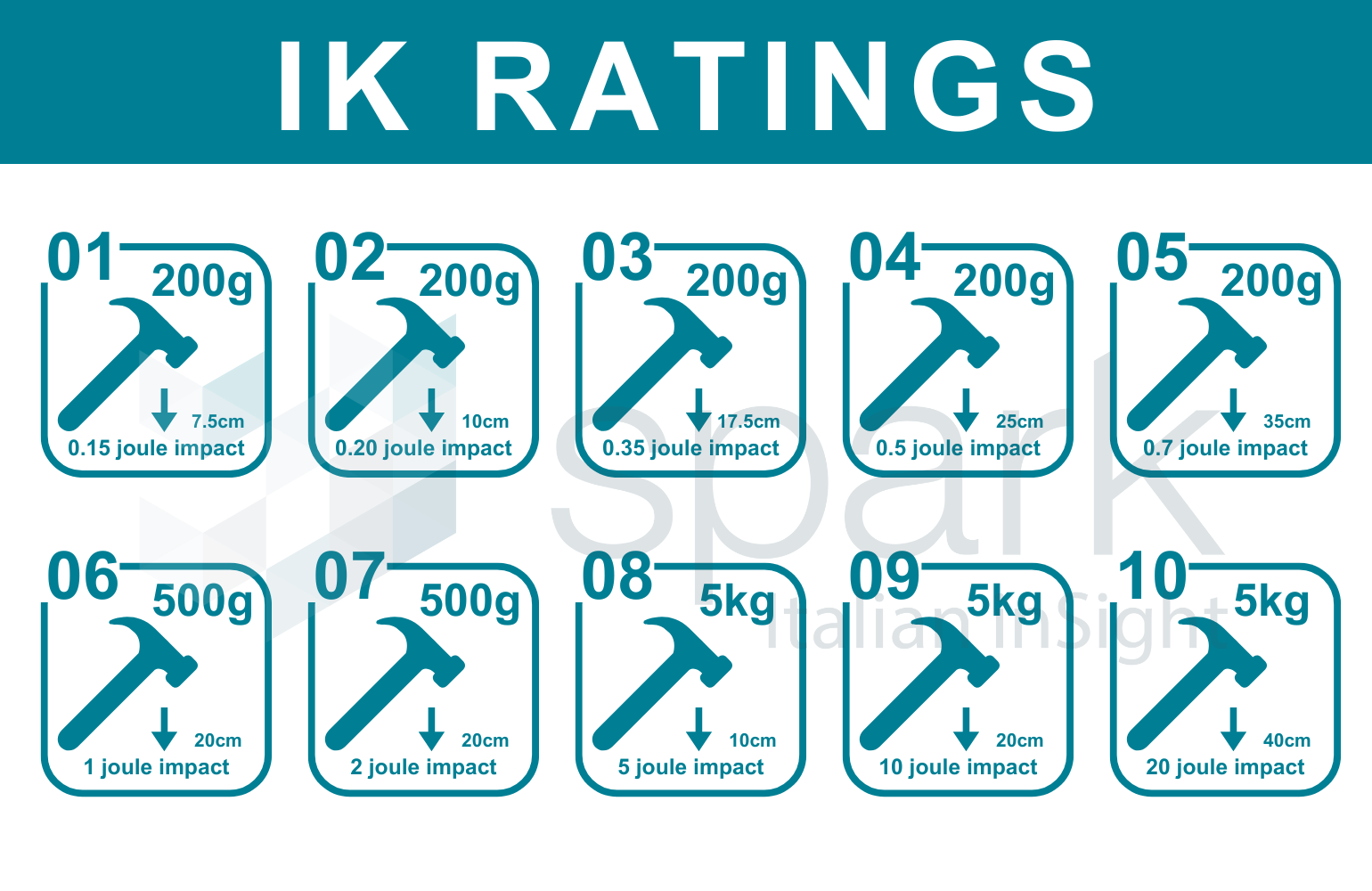

IK Impact Protection Codes
The IK rating is typically represented as "IK" followed by two digits, ranging from 00 to 10, which consists of a total of 10 levels. These numbers indicate the level of impact resistance the device can withstand under specific conditions; the higher the number, the stronger the device's impact resistance. Specifically, an IK10 rating signifies that the device can withstand an impact energy of up to 20 joules. The testing methods include dropping a steel ball from a certain height to strike the device, among other procedures.
How to Test IK Ratings?
IK ratings are established according to the international standard IEC 62262, used to evaluate the protective capability of devices against mechanical impacts. The process of testing IK ratings typically includes the following steps:
1. Preparation of Test Sample:
Select the camera to be tested and ensure it is in its factory condition, with no visible damage.
2. Testing Device Preparation:
Use a specialized impact testing device, which typically involves a weight (such as a steel ball or other fixed-volume object), with the weight and size depending on the required IK rating for the test.
3. Conducting the Test:
Drop the weight from a specified height to strike the surface of the sample. The height and weight of the object are set according to the corresponding IK rating. For example, IK01 corresponds to a weight of 0.15 kg dropped from a height of 0.15 meters, while IK10 may use a weight of 5 kg dropped from a height of 1.5 meters.
4. Inspecting the Test Sample:
After completing the impact test, check the integrity of the sample. It is necessary to confirm whether the sample can still operate normally following the impact and whether there is any visible damage or structural deformation.
Recommended IK10 Rating IP Cameras
The entire range of Omnieye Advanced cameras is manufactured in Taiwan and has passed security certification from the Industrial Development Bureau of the Ministry of Economic Affairs and UL certification, achieving the IK10 vandal-proof rating. This ensures that surveillance environments can reliably depend on their use. Below is an introduction video for the entire Advanced camera series:
Advantages of Omnieye Advanced IK10 IP Cameras
Outstanding Vandal Resistance: The IK10 rating indicates that the camera can withstand impacts of up to 20 joules, making it highly suitable for environments prone to impacts, such as factories, warehouses, or public places.
Enhanced Security: IK10 cameras effectively deter intentional vandalism or destructive acts, further ensuring the safety of the facility.
Long Lifespan and Low Maintenance Requirements: Due to their robust protective capabilities, IK10 cameras typically require less maintenance and fewer replacements, reducing long-term operational costs.
Flexible Installation Locations: Because of their impact-resistant features, these types of cameras can be installed in vulnerable areas, such as entrances or driveways, maximizing their surveillance effectiveness.
Improved Image Quality: Spark Omnieye Advanced IK10 cameras are equipped with high-resolution lenses and advanced image processing technology, ensuring excellent image quality even in harsh environments.
Related Products
 |
 |
 |
||
|
Advanced BM Series Bullet Camera |
Advanced DM Series Dome Camera |
Advanced PM Series High-Speed Dome PTZ Camera |
To learn more about camera specifications and pricing information, please click the button above to fill out your details, and a representative will contact you.
